Soul Floor Spout - Elenni specification drawing

Soul Floor Spout

ADP Australia

SKU: JTAPFSSOUBK

5.0 from 132 Google reviews Read them on Google

Colour Matte Black

Specifications

Dimensions (ADP spec sheet): 915 mm high x 80 mm wide x 357 mm deep
Material: DZR (dezincification resistant) brass
Finish process (ADP): Brushed Brass PVD; Brushed Copper PVD; Brushed Nickel PVD; Matte Black electroplated; Matte White powder coated
Water pressure (ADP): 350 to 500 kPa working, 500 kPa maximum; not recommended for gravity fed systems or water tanks
Temperature rating (ADP): 5 to 65 C, must not exceed 70 C
Installation: by a licensed plumber to AS/NZS 3500 or local authority requirements
Product codes: Chrome JTAPFSSOUCP; Matte Black JTAPFSSOUBK; Matte White JTAPFSSOUWH; Brushed Brass JTAPFSSOUBB; Brushed Nickel JTAPFSSOUNK; Brushed Copper JTAPFSSOUBCO

Pairs well with:

Soul Groove Wall MixerWall mixer · Brushed Brass

Description

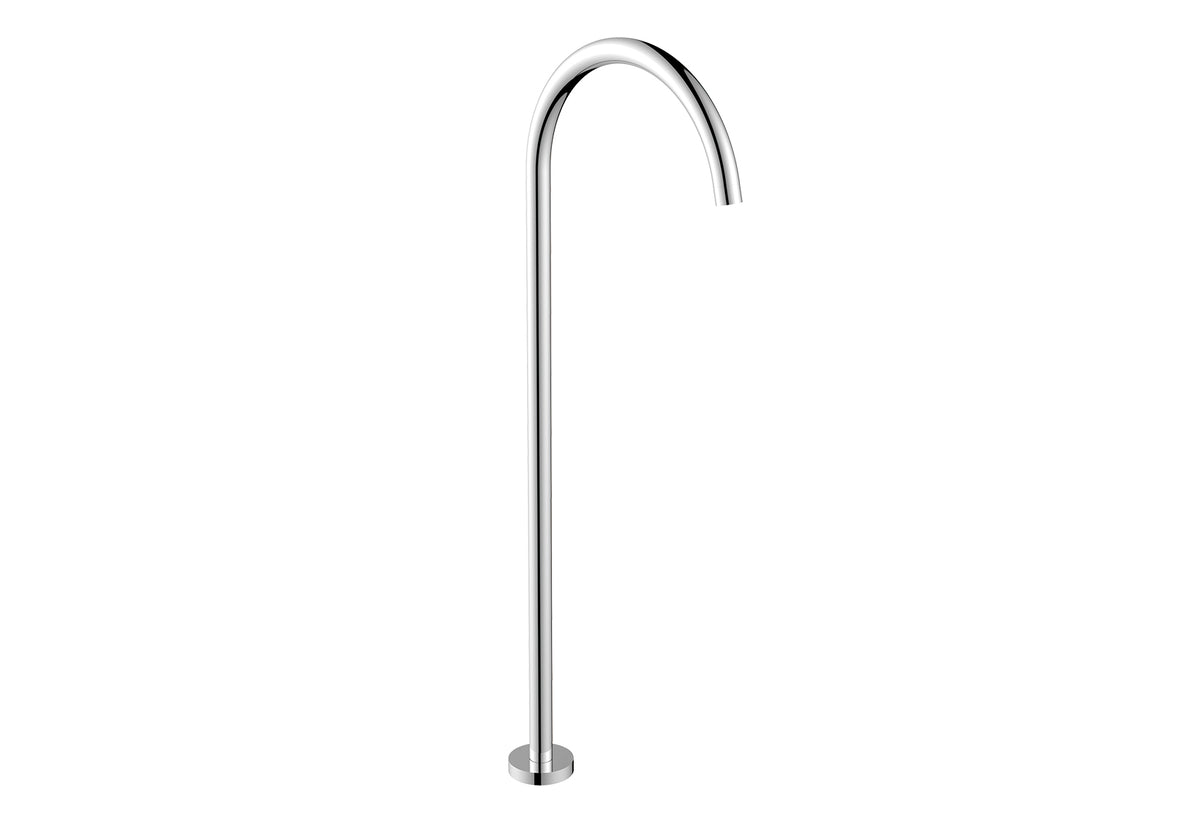

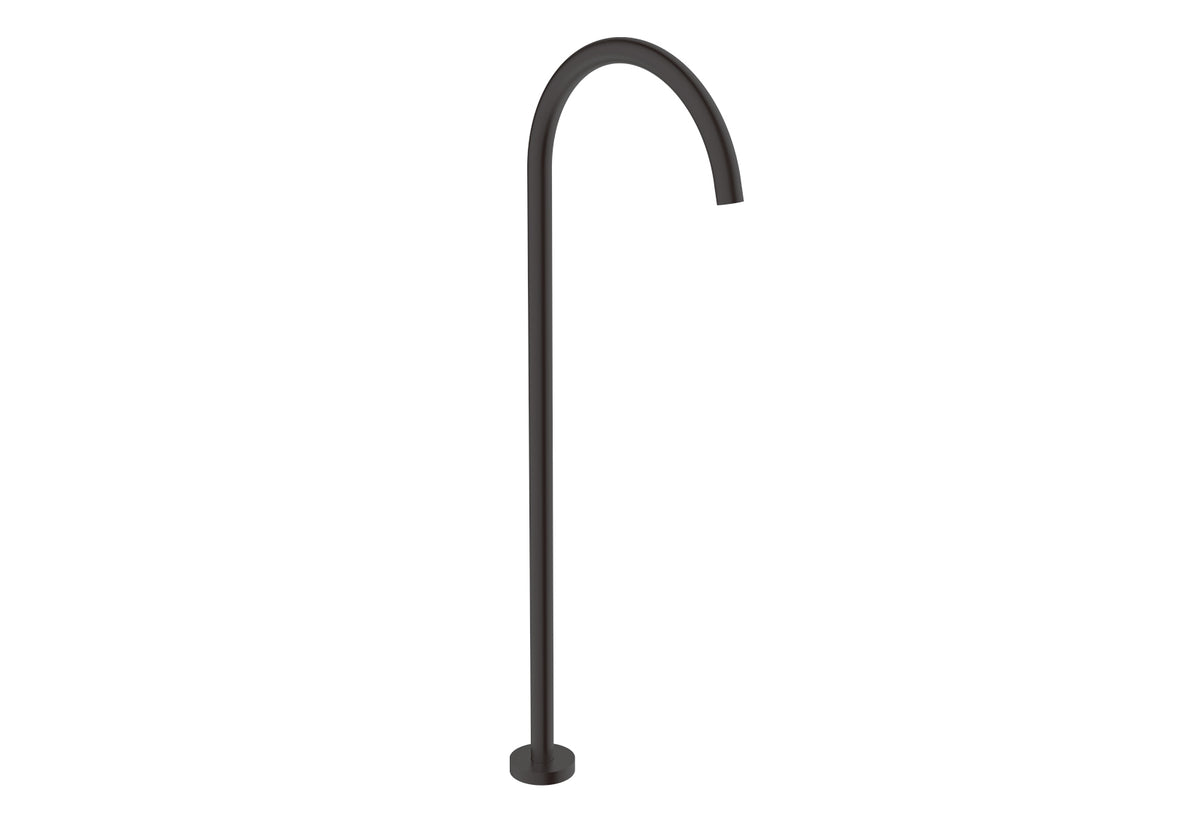

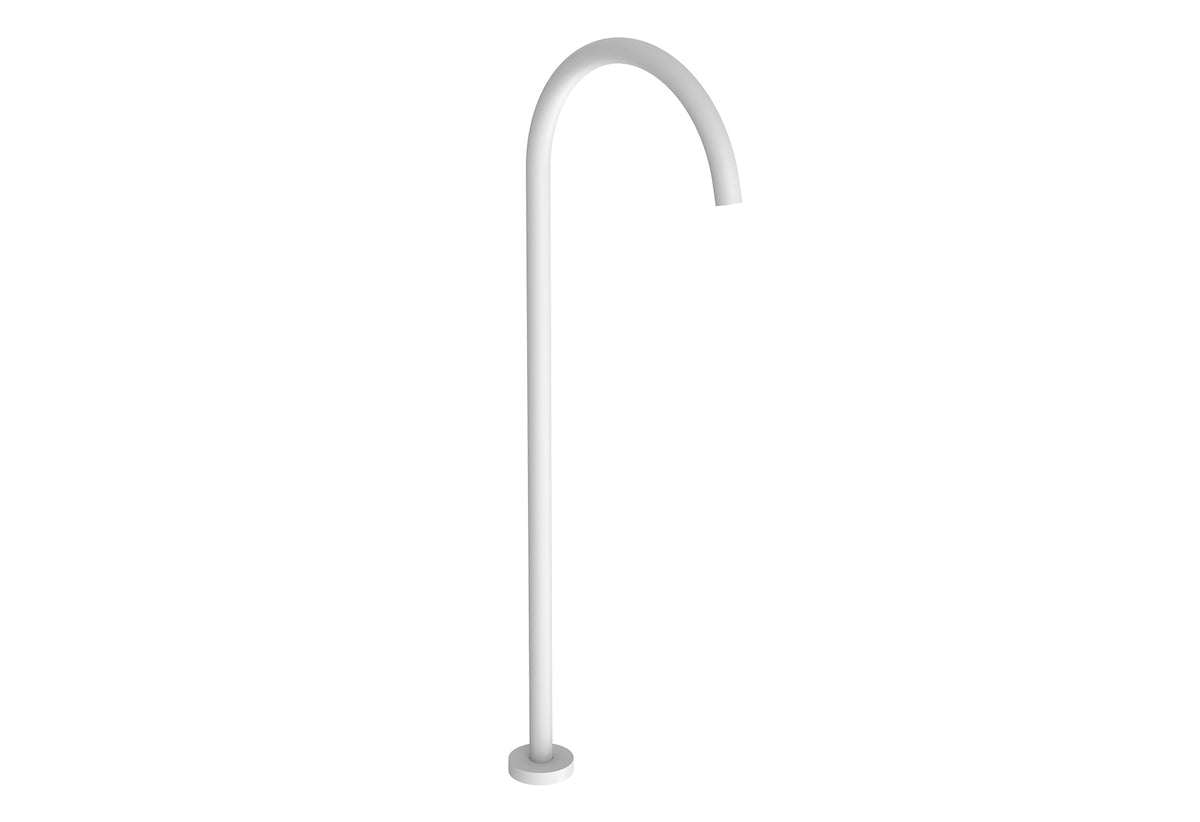

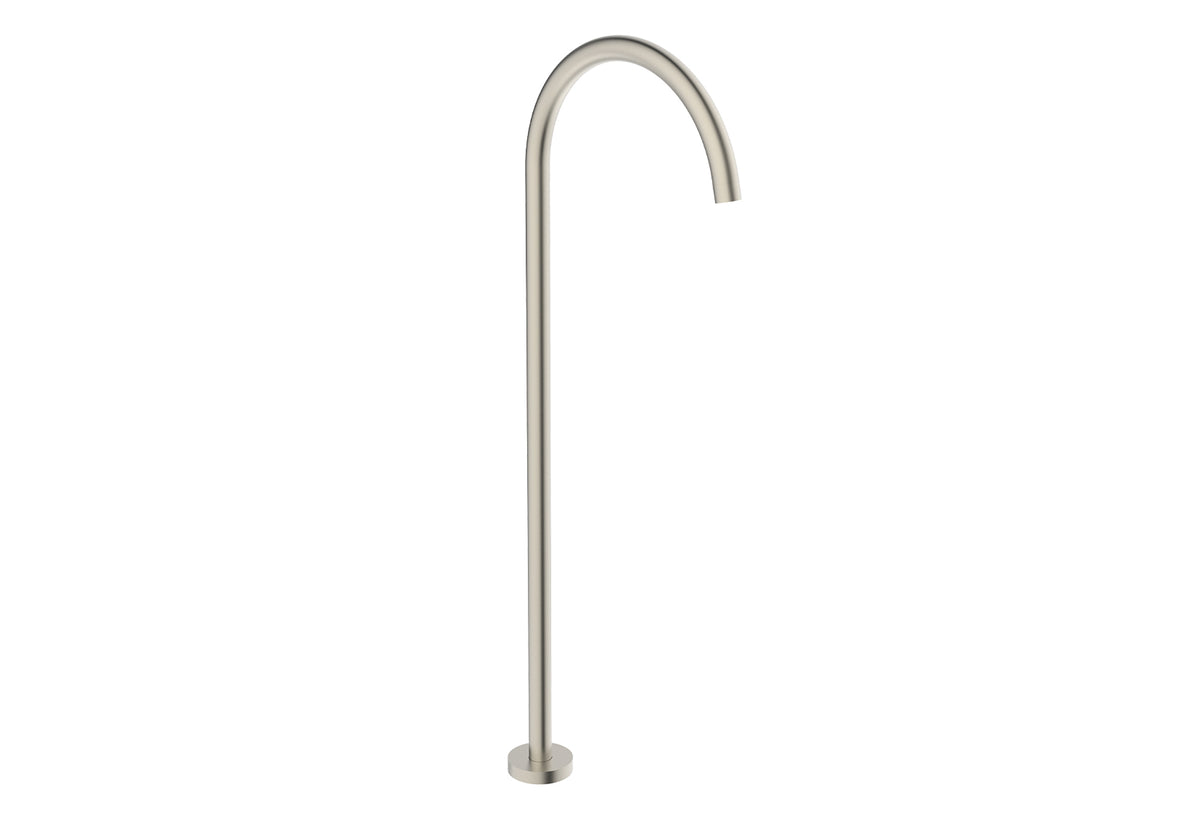

The ADP Soul Floor Spout is a floor mounted spout for freestanding baths from the Soul range.

Available in Chrome, Matte Black, Matte White, Brushed Brass, Brushed Nickel and Brushed Copper.

ADP tapware warranty (ADP Care and Maintenance guide, 07/2025): cartridge 15 years; body 7 years against manufacturing faults and flaking; parts and labour 2 years; commercial use 1 year. Installation by a licensed plumber is required for warranty claims.

Specification sheet Download PDF

Free design advice in our Loganholme showroom - Showroom details

Courier from $22.95 Australia-wide (by weight), or free pickup from Shop 4, 1 Bryants Rd, Loganholme QLD 4129. Exact rate at checkout. Delivery details

30-day returns - Delivery & returns

Free Loganholme pickup - confirm when ready

Call showroom · 07 3209 9644 Visit Loganholme showroom

Delivery & returns

Orders are usually prepared within 1-3 business days after payment. Delivery rates and estimates are calculated at checkout. We ship Australia-wide from Loganholme.

Parcels (tapware and compact fittings) travel by courier. Bulky goods (vanities, baths, toilets, large basins and similar) travel by specialised kerbside / ground-level freight - there is no complimentary freight on heavy goods. Parcels from $22.95, vanities $159 up to 1200 mm wide ($189 or $249 over 1200 mm), toilets from $189, non-stone baths $249 flat and stone baths $399 flat - the same rates Australia-wide, including all of Queensland. Meir items marked Free Shipping ship free. Exact rate at checkout.

Free showroom pickup from our Loganholme showroom once we confirm your order is ready. Call 07 3209 9644 before you drive in if collecting stock from the floor.

Full delivery & returns policy (30-day returns. T&C apply).

Warranty (Elenni)

Warranty cover is provided by the manufacturer of this product. Periods and conditions vary by brand and item as described above.

Elenni will help you lodge and follow up a claim with proof of purchase, photos and a clear description of the fault. The manufacturer decides repair, replacement or other outcomes under their terms. This does not replace your rights under the Australian Consumer Law.

To the extent required by the manufacturer, products should generally be installed by a licensed tradesperson in line with manufacturer instructions and applicable Australian Standards / plumbing codes, and used and maintained as directed. Labour, removal, reinstall and making-good costs are typically not covered by the manufacturer or by Elenni unless the Australian Consumer Law requires otherwise.

Does the Soul Floor Spout have a WELS rating?

ADP does not show a WELS rating for the Soul Floor Spout on its product page or specification sheet, so none is listed here.

What finishes and product codes are available for the Soul Floor Spout?

ADP codes by finish: Chrome JTAPFSSOUCP; Matte Black JTAPFSSOUBK; Matte White JTAPFSSOUWH; Brushed Brass JTAPFSSOUBB; Brushed Nickel JTAPFSSOUNK; Brushed Copper JTAPFSSOUBCO.
